HELLION HELLboard LED

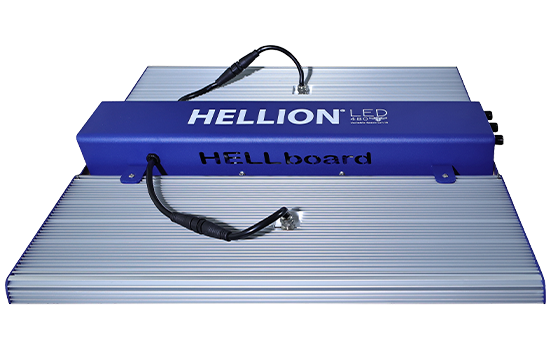

Surf the Spectrum with our GENIUS 480W
This HELLboard has it all – Good looks, Power,Quality, Versatility and Intelligence.
3 x Channel Spectral Mixing to Mimic Nature/Create Seasons and Boost Quality + Yield.3 x Sosen Drivers to power Veg, Bloom and UV Diode Groups separately and Ultra-Efficiently.
1080 x Diodes of7 xTypes to provide a Banquet of Photosynthetic + Bio-Stimulatory Spectra.(Samsung 301H EVO 3K + 5K, Samsung 301H 3K + 5KOsram Hyper Red, Osram lR, Seoul UV).
Multi-Finned Heat Dissipation to ensure Cool Operation Peak Diode Performance + Long Life.
And,of course, the Genius 480 is compatible with our HELLION-LED Master lll controller (3 x Channel Programable Brain with 5 x Areas of Memory to store & recall Preprogrammedor Grower Created Light Recipes). Pure GENIUS!!

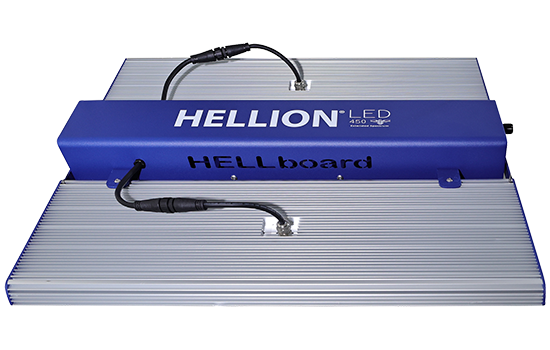

Dominate the Grow space with OUr PERFORMER 450W
Born to lmpress, this HELLboard combines Power with Quality and Simplicity with Sportiness.
1 xchannel, 2 x Sosen Drivers and a mix of 944 x Diodes create a Powerful + reliable platform.
Samsung 301H 3K+ 5K Primary Diodes for Highest Efficacy and Quality full spectrum light.
Osram Hyper Red + Osram IR Secondaries provide Industry topping Penetration and Bulk.
Multi-Finned Heat Dissipation ensures Cool Operation,Peak Diode Performance + Long Life.
All the above, combined in Sports Car style, shouts PERFORMER!(Compatible with all industry standard RJ11-14 Cable(0-10V/PWM)controllers).


Get in the Game with our STARTER 450W
Beginner to Budget Conscious, this HELLboard hasyour back! Power + Style at a modest price,
2 x Sosen Drivers, Samsung 281B Pro 3K + 5K Primary Diodes with Peak PPE of 2.9 umol/J. 2835 Red and IR Secondary Diodes + Multi-Finned Cooling combine for Peak Performance.
All this, along with a 1024 x Diode count, create a real Monster of a STARTER(Compatible with all industry standard RJ11-14 Cable(0-10V/PWM)controllers)

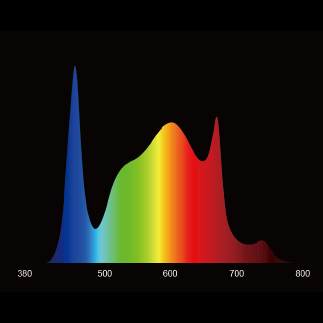

DIALNG IN THE PERFECT SPECTRUM

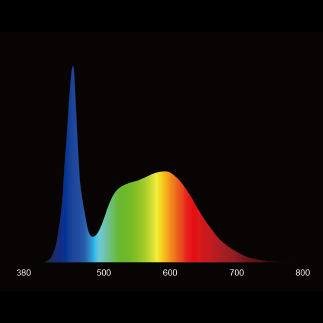

HELLboard 480W Genius is equipped with 3 x independent channles (VEG, BLOOM, UV) for spectral diversity and control. VEG channel is full-spectrum, rich in Blue. BLOOM is also full-spectrum, rich in Red. UV provides UVA + Near Blue (potency plus)
Further, both VEG+BLOOM channels use Samsung EVO diodes to turbo Boost Photosynthesis!!





TAKE SPECTRAL QUALITY TO THE NEXT LEVEL
CONTROL STRETCH, BOOST TERPENES, ENHANCE FLAVOURS

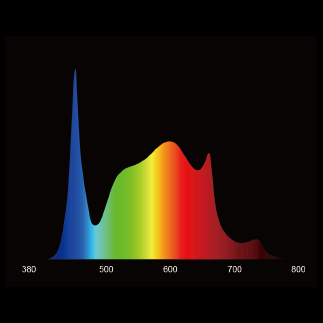

HB450S
PPF 1285 umol/s
* BPF 1305 umol/s

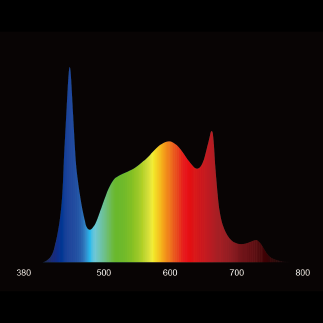

HB450P
PPF 1330 umol/s
* BPF 1350 umol/s
HB480G
PPF 1395 umol/s
* BPF 1465 umol/s
*BPF (Bioactive Photon Flux/280 -800nm] includes PAR + UV/Near-Blue + Far-Red/IR.

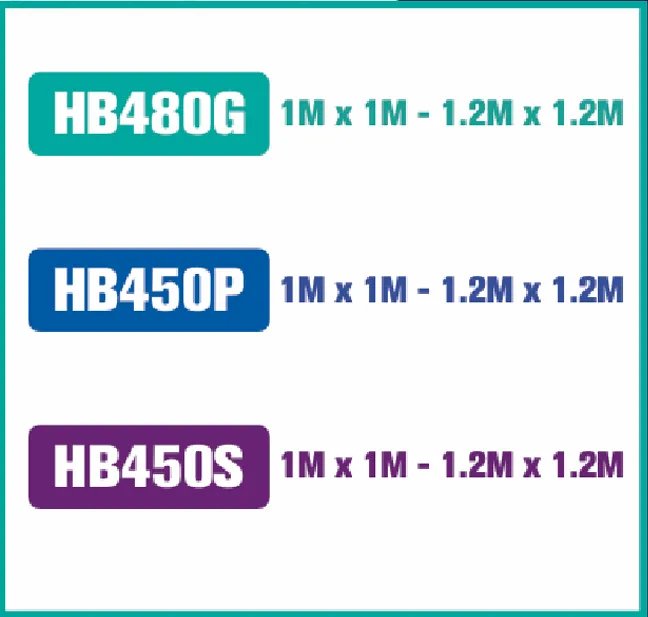

WHAT SIZE SPACE CAN I COVER WITH A HELLboard LED?

FULLY AUTOMATE YOUR VS3 LEDS WITH OUR HELLION 3-CHANNEL LED CONTROLLERS

Specifications



| Model | HB480G | HB450P | HB450S |
| 3 x Variable Channels | Veg + Bloom + UV | Single | Single |
| Full Spectrum + Red + Far Red Ultraviolet – CRI | 94.3 | 93.1 | 93.1 |
| Diode Count | 1080 | 944 | 1024 |
| Diode Type | Veg :448pcs 5000k 301H ,128pcs 5000k 301H EVO Bloom: 336pcs 3000K 301H ,96pcs 3000k 301H EVO ,48pcs osram 660nm,8pcs Osram 730nm UV: 16pcs Seoul 395nm | 512pcs 5000K LM301H ,384pcs 3000K LM301H + 40pcs Osram 660nm+ 8pcs Osram 730nm | 512pcs 5000K 281B Pro + ,384pcs 3000K 281B Pro + 112pcs SMD2835 660nm + 16PCS SMD 3030 730nm |
| Wet Rating | Drivers: IP67 ,LED Bars: IP65 ,Driver Housing: IP20 | ||
| PPF | 1395 µmol/s | 1330 µmol/s | 1285 µmol/s |
| PPE | 2.9 µmol/j | 2.9 µmol/j | 2.85 µmol/j |
| BPF | 1465 µmol/s | 1350 µmol/s | 1305 µmol/s |
| BPE | 3.05 µmol/j | 3.05 µmol/j | 2.9 µmol/j |
| Input Voltage | 100-265 VAC – 50/60Hz | 100-265 VAC – 50/60Hz | 100-265 VAC – 50/60Hz |
| Input Current | 4.8 – 1.81 Amp | 4.5 – 1.70 Amp | 10 – 3.78 Amp |
| Power Input | 480W | 450W | 450W |
| Fixture Dimension | 620mm x 620mm x 70mm | 620mm x 620mm x 70mm | 620mm x 620mm x 70mm |
| Net Weight | 13kg | 12kg | 12kg |
(BPF/BPE = Bioactive Photon Flux/Efficacy)
